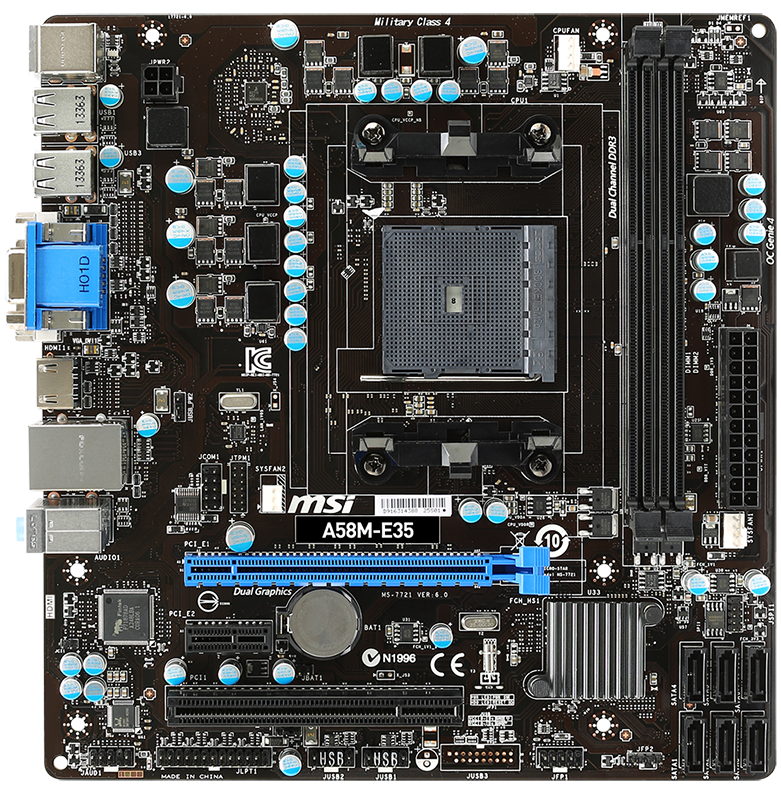

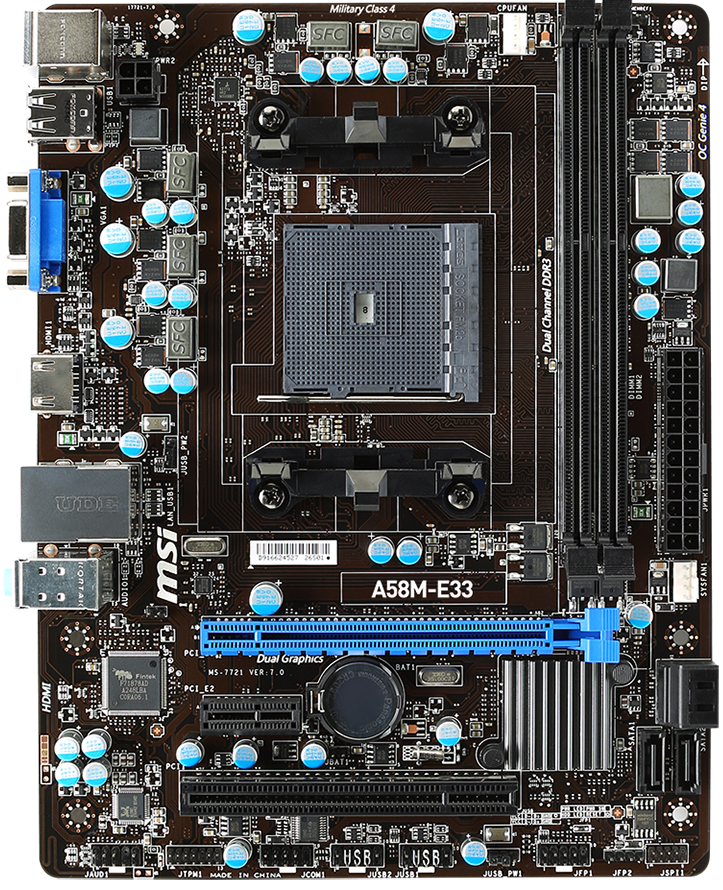

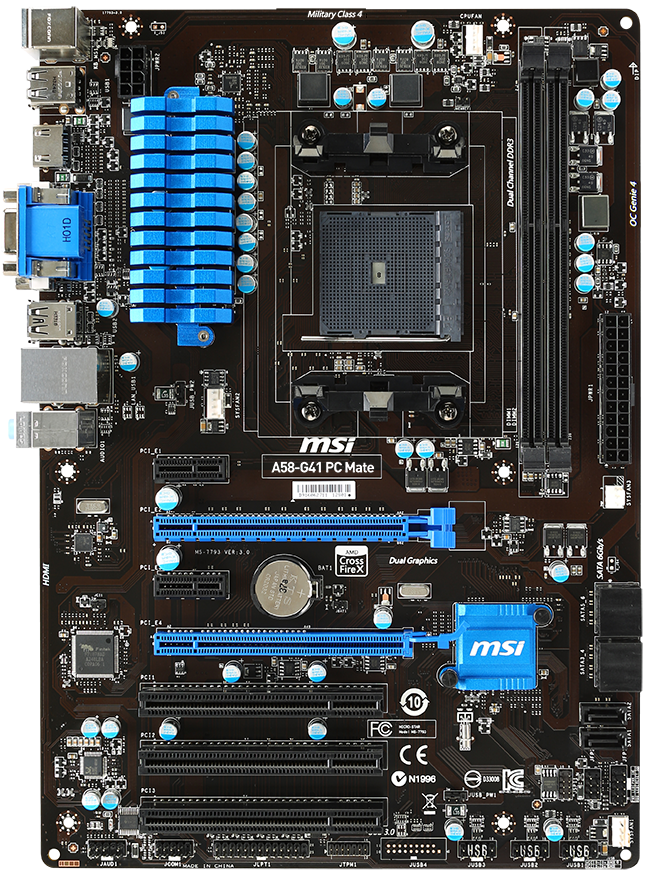

This week MSI company introduced three motherboards CPU socket FM2 + based chipset AMD A58 - A58-G41 PC Mate, A58M-E35 and A58M-E33.
| Model |
A58-G41 PC Mate |
A58M-E35 |
A58M-E33 |
|
|
|
|
| CPU slot |
FM2 + |
FM2 + |
FM2 + |
| Supported CPU |
Series A, Athlon |
Series A, Athlon |
Series A, Athlon |
| Chipset |
A58 |
A58 |
A58 |
| Form Factor |
ATX |
micro-ATX |
micro-ATX |
| Expansion Slots |
1x PCI Express 3.0 x16;
1x PCI Express 2.0 x16;
2x PCI Express 2.0 x1;
3x PCI |
1x PCI Express 3.0 x16;
1x PCI Express 2.0 x1;
1x PCI |
1x PCI Express 3.0 x16;
1x PCI Express 2.0 x1;
1x PCI |
| Video Outputs |
HDMI, DVI, D-Sub |
HDMI, DVI, D-Sub |
HDMI, DVI, D-Sub |
| Memory |
2x DIMM, DDR3 |
2x DIMM, DDR3 |
2x DIMM, DDR3 |
| SATA |
6x SATA 3Gb / s |
6x SATA 3Gb / s |
4x SATA 3Gb / s |
| RAID Support |
RAID 0, 1, 10 |
RAID 0, 1, 10 |
RAID 0, 1, 10 |
| USB |
12x USB 2.0 (6 panel I / O) |
10x USB 2.0 (6 panel I / O) |
8x USB 2.0 (4 panel I / O) |
| LAN |
10/100/1000 Mbit / s |
10/100/1000 Mbit / s |
10/100/1000 Mbit / s |
| Audio |
8 channels |
8 channels |
8 channels |

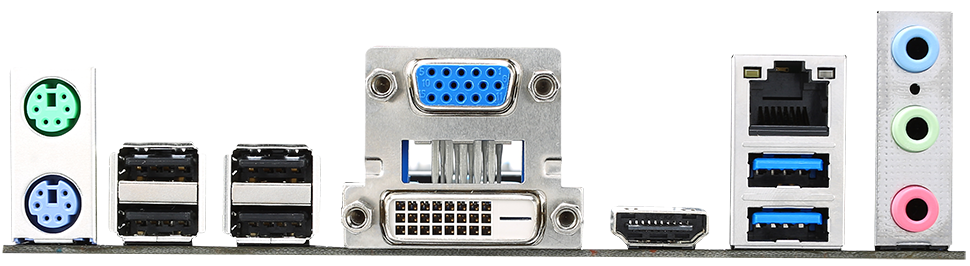

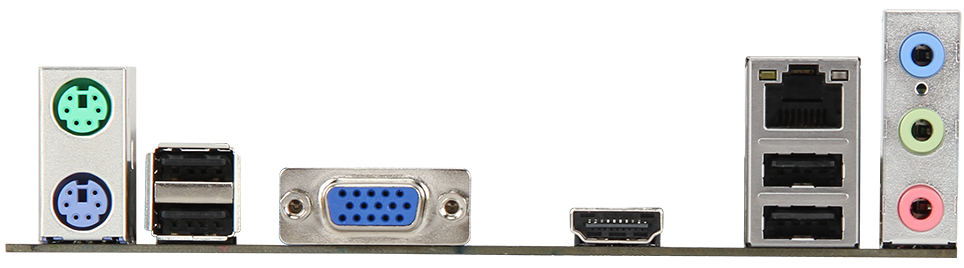

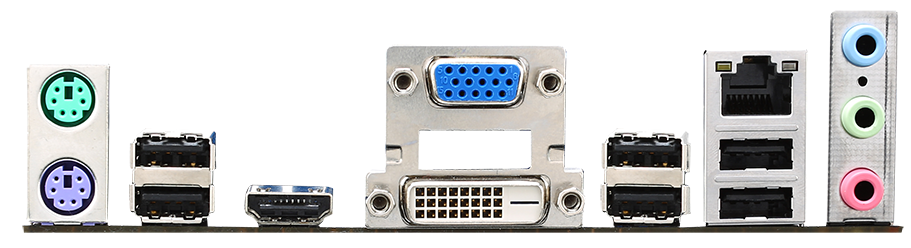

| Panel I / O |
|
|
 |
